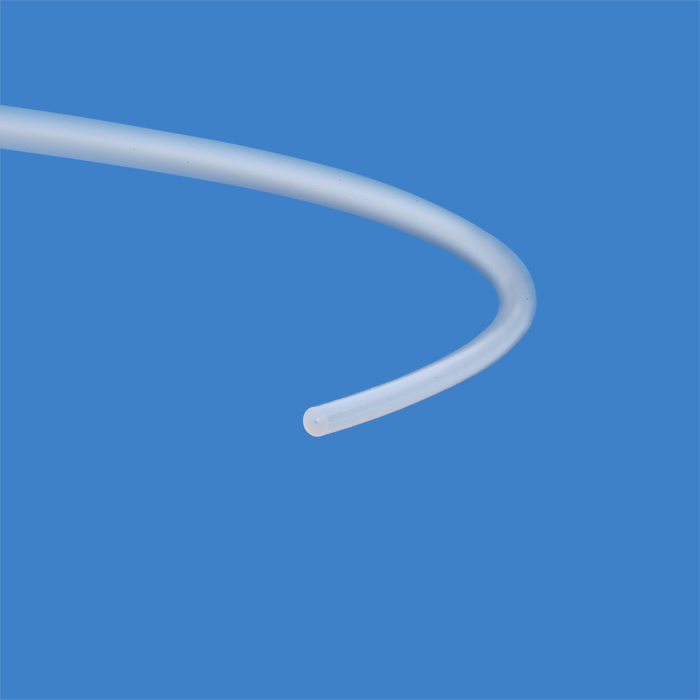

CUSTOM ITEM: Tubing, PTFE, 0.007 inch (0.18 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, Your custom continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Info:
49210-07-1C ARE‑Applied Research PTFE Tubing is a made‑to‑order, custom continuous length tubing solution designed for HPLC, UHPLC, LC‑MS, and general low‑pressure laboratory applications, offering maximum flexibility in system design and installation.
This tubing is manufactured from 100% virgin PTFE resin, ensuring chemical inertness, low extractables, and suitability for sensitive analytical workflows, while allowing users to specify exact continuous lengths to eliminate unnecessary connections and dead volumes.
✅ Review custom order guidelines and non‑returnable terms for made‑to‑order tubing
Custom Continuous Length – Built to Your Specification
Supplied in user‑specified continuous lengths
Priced per meter
Eliminates need for multiple fittings and unions
Reduces potential leak points and dead volume
✅ Ideal for OEM integration, system redesign, and complex routing
Important Custom Order Notice
Made‑to‑order product
Non‑returnable and non‑cancelable once ordered
Manufactured specifically to requested length
✅ Recommended for finalized system designs with confirmed specifications
Precision Dimensions – Low Flow Optimization
Inner Diameter (ID): 0.007" (0.18 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.71 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Supports accurate low‑flow delivery and consistent performance
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector waste lines
General solvent transfer
Pressure Rating: 850 psi (58.6 bar)
✅ Suitable for extended continuous tubing runs without interruptions
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives or plasticizers (except trace color coding particles)
Chemically inert and non‑reactive
✅ Minimizes contamination risk in LC‑MS and high‑sensitivity analyses
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding and continuous-use lab environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing gas exchange
Important for:
Degassed solvents
Oxygen‑sensitive applications
✅ Consider alternative tubing when gas impermeability is critical
Flexible & Durable Design
Flexible for custom routing and system integration
Durable for repeated use
Natural translucent color allows visual flow confirmation
✅ Enhances installation efficiency and system maintenance
Spool Supply for Long Lengths
Lengths ≥ 15 meters supplied on a spool
Improves handling and storage
Reduces kinking during installation
✅ Ideal for large systems and long continuous runs
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and regulatory standards
Available Standard Length Alternatives
✅ Consider pre‑cut lengths when custom continuity is not required:
Typical Applications
Custom HPLC mobile phase delivery systems
Continuous solvent routing (pre‑ and post‑pump)
LC‑MS fluid transfer lines
OEM instrument manufacturing
Laboratory system standardization
Important Usage Notes
Custom order item – non‑returnable / non‑cancelable
Not intended for high‑pressure pump head connections
Consider gas permeability for degassed solvent workflows
Ensure proper fittings for secure installation
Made‑to‑Order & Pricing Information
This is a custom, made‑to‑order item.
Orders cannot be canceled once placed
Custom items are non‑returnable
